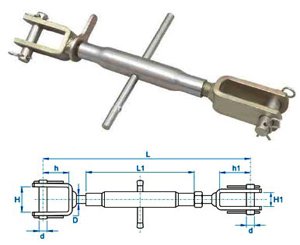

| ADJUSTABLE LEVELLING ARM | |||||||||
| CODE | L (MIN) | L (MAX) | L1 | D | d | H1 | h1 | d1 | h2 |
| KAPALA1930 | 380 | 530 | 230 | M24X3 | 18 | 24 | 72 | 19.0 | 44 |
| KAPALA1931 | 380 | 530 | 230 | M24X3 | 18 | 24 | 72 | 22.1 | 35 |
| KAPALA1940 | 410 | 560 | 260 | M24X3 | 18 | 24 | 72 | 19.0 | 44 |
| KAPALA1941 | 410 | 560 | 260 | M24X3 | 18 | 24 | 72 | 22.1 | 35 |
| KAPALA1943 | 490 | 660 | 340 | M24X3 | 16 | 24 | 72 | 22.1 | 35 |
| KAPALA1945 | 520 | 690 | 380 | M24X3 | 16 | 24 | 72 | 22.1 | 35 |

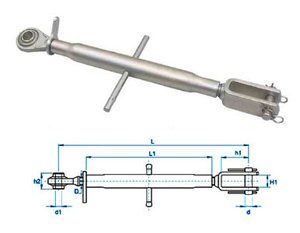

| ADJUSTABLE LEVELLING ARM | |||||||||
| CODE | L (MIN) | L (MAX) | L1 | D | d | H | h | H1 | h1 |
| KAPALA1900 | 380 | 490 | 200 | M22X2.5 | 18 | 30 | 60 | 24 | 72 |
| KAPALA1910 | 450 | 600 | 260 | M24X3 | 18 | 40 | 70 | 24 | 72 |
| KAPALA1920 | 500 | 650 | 290 | M27X3 | 18 | 40 | 70 | 24 | 72 |

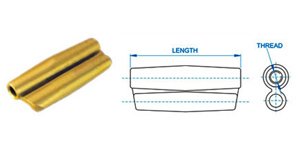

| TURN BUCKLE | ||
| CODE | THREAD | LENGTH |
| KAPTBC 01 | M16X2 | 140 |
| KAPTBC 02 | M20X2.5 | 140 |
