KAP Top Link Asembilies

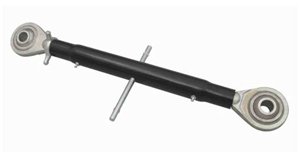

Top Link Assembly

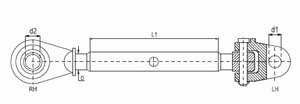

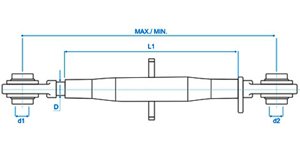

CODE CAT D1 -D2 PIPE L1 THREAD D MIN. MAX.
KAPTLA1900190 0 – 0 7.1/2" 3 / 4 UNC 11" 16.3/8"
KAPTLA1900248 0 – 0 9.3/4/" 3 / 4 UNC 13.3/8" 18.5/8"
KAPTLA2811178 1 – 1 7" 1.1/8 UNC 11.5/8" 14.3/4"
KAPTLA2812178 1 – 2 7" 1.1/8 UNC 11.3/4" 15"
KAPTLA2822178 2 – 2 7" 1.1/8 UNC 12" 15.1/8"
KAPTLA2811228 1 – 1 9" 1.1/8 UNC 13.5/8" 18.3/4"
KAPTLA2812228 1 – 2 9" 1.1/8 UNC 13.3/4" 19"
KAPTLA2822228 2 – 2 9" 1.1/8 UNC 14" 19.1/4"
KAPTLA2811260 1 – 1 11.1/4" 1.1/8 UNC 16" 24"
KAPTLA2812260 1 – 2 11.1/4" 1.1/8 UNC 16.3/8" 24.1/4"
KAPTLA2822260 2 – 2 11.1/4" 1.1/8 UNC 16.1/2" 24.3/8"
KAPTLA2811330 1 – 1 13" 1.1/8 UNC 17.1/2" 26.3/4"
KAPTLA2812330 1 – 2 13" 1.1/8 UNC 17.3/4" 27"
KAPTLA2822330 2 – 2 13" 1.1/8 UNC 18.1/8" 27.1/8"
KAPTLA2811368 1 – 1 14.1/2" 1.1/8 UNC 19" 27"
KAPTLA2812368 1 – 2 14.1/2" 1.1/8 UNC 19.1/2" 27.1/8"
KAPTLA2822368 2 – 2 14.1/2" 1.1/8 UNC 20" 31.1/2"
KAPTLA2811406 1 – 1 16" 1.1/8 UNC 20.1/2" 28"
KAPTLA2812406 1 – 2 16" 1.1/8 UNC 20.3/4" 28.3/8"
KAPTLA2822406 2 – 2 16" 1.1/8 UNC 21" 32.1/2"
KAPTLA2811438 1 – 1 17.1/4" 1.1/8 UNC 21.5/8" 29.3/8"
KAPTLA2812438 1 – 2 17.1/4" 1.1/8 UNC 22" 29.1/2"
KAPTLA2822438 2 – 2 17.1/4" 1.1/8 UNC 22.1/4" 33.7/8"
KAPTLA2811508 1 – 1 20" 1.1/8 UNC 24.3/8" 32"
KAPTLA2812508 1 – 2 20" 1.1/8 UNC 24.3/4" 32.1/4"
KAPTLA2822508 2 – 2 20" 1.1/8 UNC 25" 36.3/8"
KAPTLA2811610 1 – 1 24" 1.1/8 UNC 28.1/2" 36"
KAPTLA2812610 1 – 2 24" 1.1/8 UNC 28.3/4" 36.1/4"
KAPTLA2822610 2 – 2 24" 1.1/8 UNC 28.7/8" 40.1/2"
KAPTLA3222380 2 – 2 15" 1.1/4 UNC 20" 30.7/8"
KAPTLA3222482 2 – 2 19" 1.1/4 UNC 24" 35.1/4"

TOP LINK ASSEMBLY (METRIC)

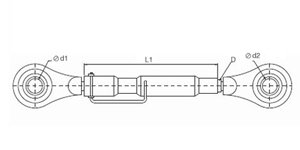

CODE CAT d1 - d2 PIPE L1(MM) THREAD D
THREAD M 20X 2.5
KAPTLA 1900 L 0-0 (16) 190 M20X2.5
KAPTLA 2500 L 0-0 (16) 250 M20X2.5
KAPTLA 4000 L 0-0 (16) 400 M20X2.5
THREAD M 22 X 2.5
KAPTLA 1201 B 1-1 120 M22X2.5
KAPTLA 1601 B 1-1 160 M22X2.5
KAPTLA 1801 B 1-1 180 M22X2.5
KAPTLA 2201 B 1-1 220 M22X2.5
KAPTLA 2301 B 1-1 230 M22X2.5
KAPTLA 3001 B 1-1 300 M22X2.5
KAPTLA 3201 B 1-1 320 M22X2.5
THREAD M 24 X 2.5
KAPTLA 1201 J 1-1 120 M24X2.5
KAPTLA 1401 J 1-1 140 M24X2.5
KAPTLA 1501 J 1-1 150 M24X2.5
KAPTLA 1651 J 1-1 165 M24X2.5
KAPTLA 1801 J 1-1 180 M24X2.5
KAPTLA 2001 J 1-1 200 M24X2.5
KAPTLA 2451 J 1-1 245 M24X2.5
KAPTLA 2801 J 1-1 280 M24X2.5
KAPTLA 3001 J 1-1 300 M24X2.5
KAPTLA 3201 J 1-1 320 M24X2.5
KAPTLA 3701 J 1-1 370 M24X2.5
KAPTLA 4001 J 1-1 400 M24X2.5
THREAD M 24 X 3
KAPTLA 1201 JG 1-1 120 M24X3
KAPTLA 1401 JG 1-1 140 M24X3
KAPTLA 1501 JG 1-1 150 M24X3
KAPTLA 1651 JG 1-1 165 M24X3
KAPTLA 1801 JG 1-1 180 M24X3
KAPTLA 2001 JG 1-1 200 M24X3
KAPTLA 2301 JG 1-1 230 M24X3
KAPTLA 2501 JG 1-1 250 M24X3
KAPTLA 2701 JG 1-1 270 M24X3
KAPTLA 3001 JG 1-1 300 M24X3
KAPTLA 3301 JG 1-1 330 M24X3
KAPTLA 3701 JG 1-1 370 M24X3
KAPTLA 4001 JG 1-1 400 M24X3
THREAD 27 X 3
KAPTLA 1801 1-1 180 M27X3
KAPTLA 1802 2-2 180 M27X3
KAPTLA 2201 1-1 220 M27X3
KAPTLA 2202 2-2 220 M27X3
KAPTLA 2751 1-1 275 M27X3
KAPTLA 2752 2-2 275 M27X3
KAPTLA 3201 1-1 320 M27X3
KAPTLA 320 D 1-2 320 M27X3
KAPTLA 3202 2-2 320 M27X3
KAPTLA 3501 1-1 350 M27X3
KAPTLA 350 D 1-2 350 M27X3
KAPTLA 3502 2-2 350 M27X3
KAPTLA 3801 1-1 380 M27X3
KAPTLA 380 D 1-2 380 M27X3
KAPTLA 3802 2-2 380 M27X3
KAPTLA 4001 1-1 400 M27X3
KAPTLA 400 D 1-2 400 M27X3
KAPTLA 4002 2-2 400 M27X3

TOP LINK ASSEMBLY (METRIC)
KAPTLA 4301 1-1 430 M27X3
KAPTLA 430 D 1-2 430 M27X3
KAPTLA 4302 2-2 430 M27X3
KAPTLA 4501 1-1 450 M27X3
KAPTLA 450 D 1-2 450 M27X3
KAPTLA 4502 2-2 450 M27X3
KAPTLA 4701 1-1 470 M27X3
KAPTLA 470 D 1-2 470 M27X3
KAPTLA 4702 2-2 470 M27X3
KAPTLA 5001 1-1 500 M27X3
KAPTLA 500 D 1-2 500 M27X3
KAPTLA 5002 2-2 500 M27X3
KAPTLA 5501 1-1 550 M27X3
KAPTLA 550 D 1-2 550 M27X3
KAPTLA 550 D 1-2 550 M27X3
KAPTLA 5502 2-2 550 M27X3
KAPTLA 5702 2-2 570 M27X3
KAPTLA 6001 1-1 600 M27X3
KAPTLA 600 D 1-2 600 M27X3
KAPTLA 6002 2-2 600 M27X3
KTL 6501 1-1 650 M27X3
KAPTLA 650 D 1-2 650 M27X3
KAPTLA 6502 2-2 650 M27X3
KAPTLA 7001 1-1 700 M27X3
KAPTLA 700 D 1-2 700 M27X3
KAPTLA 7002 2-2 700 M27X3
KAPTLA 320 D 44/42* 1-2 320 M27X3
KAPTLA 400 D 44/42* 1-2 400 M27X3
KAPTLA 450 D 44/42* 1-2 450 M27X3
KTL 500 D 44/42* 1-2 500 M27X3
KAPTLA 3202-42 2-2 320 M27X3
KAPTLA 4002-42 2-2 400 M27X3
KAPTLA 4502-42 2-2 450 M27X3
KAPTLA 5002-42 2-2 500 M27X3

Top Link Assemblies
THREAD M 30 X 3 ( HEAVY DUTY PIPE )

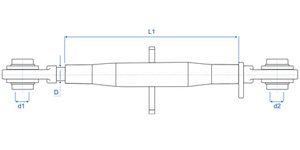

CODE CAT D1 -D2 PIPE L1 THREAD D MIN. MAX.
KAPTLAH3022330 2 – 2 330 M30 X 3 460 700
KAPTLAH3022370 2 – 2 370 M30 X 3 500 740
KAPTLAH3022400 2 – 2 400 M30 X 3 530 770
KAPTLAH3022450 2 – 2 450 M30 X 3 580 820
KAPTLAH3022500 2 – 2 500 M30 X 3 630 870
KAPTLAH3022600 2 – 2 600 M30 X 3 730 970

Top Link Assemblies
THREAD M 30 X 3
CODE CAT D1 -D2 PIPE L1 THREAD D MIN. MAX.
KAPTLA3011370 1 – 1 370 M30 X 3 500 720
KAPTLA3012370 1 – 2 370 M30 X 3 500 730
KAPTLA3022370 2 – 2 370 M30 X 3 500 740
KAPTLA3011400 1 – 1 400 M30 X 3 530 750
KAPTLA3012400 1 – 2 400 M30 X 3 530 760
KAPTLA3022400 2 – 2 400 M30 X 3 530 770
KAPTLA3011450 1 – 1 450 M30 X 3 580 800
KAPTLA3012450 1 – 2 450 M30 X 3 580 810
KAPTLA3022450 2 – 2 450 M30 X 3 580 820
KAPTLA3022460 2 – 2 460 M30 X 3 590 830
KAPTLA3011500 1 – 1 500 M30 X 3 630 850
KAPTLA3012500 1 – 2 500 M30 X 3 630 860
KAPTLA3022500 2 – 2 500 M30 X 3 630 880
KAPTLA3022520 2 – 2 520 M30 X 3 650 900
KAPTLA3022550 2 – 2 550 M30 X 3 650 930
KAPTLA3022560 2 – 2 560 M30 X 3 690 940
KAPTLA3022600 2 – 2 600 M30 X 3 730 980
KAPTLA3022650 2 – 2 650 M30 X 3 780 1030
KAPTLA3022700 2 – 2 700 M30 X 3 830 1080
KAPTLA3022720 2 – 2 720 M30 X 3 880 1100

Top Link Asembly (Heavy duty)

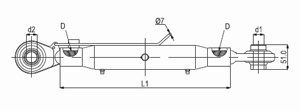

CODE CAT d1-d2 PIPE L1 (MM) THREAD D
THREAD M 30 X 3.5 (Positive Handle Lock) 80-Head
KAPTLA3022360PHL 2-2 360 M30X3.5
KAPTLA3022400PHL 2-2 400 M30X3.5
KAPTLA3022460PHL 2-2 460 M30X3.5
KAPTLA3022520PHL 2-2 520 M30X3.5
KAPTLA3022580PHL 2-2 580 M30X3.5
KAPTLA3022640PHL 2-2 640 M30X3.5
KAPTLA3022700PHL 2-2 700 M30X3.5
KAPTLA3022800PHL 2-2 800 M30X3.5
KAPTLAY3022230 2-2 230 M30X3.5
KAPTLAY3022270 2-2 270 M30X3.5
KAPTLAY3022370 2-2 370 M30X3.5
KAPTLAY3022560 2-2 560 M30X3.5

Top Link Asembly (Heavy duty)
( M 36x3 )
CODE CAT d1-d2 PIPE L1 (MM) THREAD D
KAPTLAY3622400 2-2 400 M36 X 3
KAPTLAY3623400 2-3 400 M36 X 3
KAPTLAY3622460 2-2 460 M36 X 3
KAPTLAY3623460 2-3 460 M36 X 3
KAPTLAY3622480 2-2 480 M36 X 3
KAPTLAY3623480 2-3 480 M36 X 3
KAPTLAY3622440 2-2 440 M36 X 3
KAPTLAY36(28.4-2)440 28.4-2 440 M36 X 3
KAPTLAY3633440 3-3 440 M36 X 3
KAPTLAY3622520 2-2 520 M36 X 3
KAPTLAY3623520 2-3 520 M36 X 3
KAPTLAY3633520 3-3 520 M36 X 3
KAPTLAY3622580 2-2 580 M36 X 3
KAPTLAY3623580 2-3 580 M36 X 3
KAPTLAY3633580 3-3 580 M36 X 3
KAPTLAY3622620 2-2 620 M36 X 3
KAPTLAY3623620 2-3 620 M36 X 3
KAPTLAY3633620 3-3 620 M36 X 3

Top Link Assembly

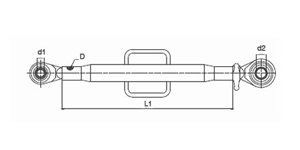

CODE CAT d1 - d2 PIPE L1 (MM) THREAD D
THREAD M 36 X 3 (Heavy Model) 80-Head
KAPTLA 36223350 2-2 350 M36X3
KAPTLA 3622380 2-2 380 M36X3
KAPTLA 3622400 2-2 400 M36X3
KAPTLA 3622460 2-2 460 M36X3
KAPTLA 3622520 2-2 520 M36X3
KAPTLA 3622570 2-2 570 M36X3
KAPTLA 3622580 2-2 580 M36X3
KAPTLA 3622600 2-2 600 M36X3
KAPTLA 3622640 2-2 640 M36X3
KAPTLA 3622700 2-2 700 M36X3
KAPTLA 3622800 2-2 800 M36X3
KAPTLA 3622900 2-2 900 M36X3
KAPTLA 36221000 2-2 1000 M36X3
THREAD M 36 X 3 (Extra Heavy Model) 96-Head
KAPTLA H3622360 2-2 360 M36X3
KAPTLA H3622400 2-2 400 M36X3
KAPTLA H3623400 2-3 400 M36X3
KAPTLA H3633400 3-3 400 M36X3
KAPTLA H3622460 2-2 460 M36X3
KAPTLA H3623460 2-3 460 M36X3
KAPTLA H3633460 3-3 460 M36X3
KAPTLA H3622520 2-2 520 M36X3
KAPTLA H3623520 2-3 520 M36X3
KAPTLA H3633520 3-3 520 M36X3
KAPTLA H3622580 2-2 580 M36X3
KAPTLA H3623580 2-3 580 M36X3
KAPTLA H3633580 3-3 580 M36X3
KAPTLA H3622620 2-2 620 M36X3
KAPTLA H3623620 2-3 620 M36X3
KAPTLA H3633620 3-3 620 M36X3
KAPTLA H3622700 2-2 700 M36X3
KAPTLA H3623700 2-3 700 M36X3
KAPTLA H3633700 3-3 700 M36X3
KAPTLA H3622800 2-2 800 M36X3
KAPTLA H3623800 2-3 800 M36X3
KAPTLA H3633800 3-3 800 M36X3
KAPTLA H36221000 2-2 1000 M36X3
KAPTLA H36231000 2-3 1000 M36X3
KAPTLA H36331000 3-3 1000 M36X3
THREAD M 40 X 3 (Heavy Model) 80-Head
KAPTLA H4022400 2-2 400 M40X3
KAPTLA H4022500 2-2 500 M40X3
KAPTLA H4022520 2-2 520 M40X3
KAPTLA H4022580 2-2 580 M40X3
KAPTLA H4022620 2-2 620 M40X3
THREAD M 40 X 3 (Extra Heavy Model) 96-Head
KAPTLA H4033400 3-3 400 M40X3
KAPTLA H4033500 3-3 500 M40X3
KAPTLA H4033520 3-3 520 M40X3
KAPTLA H4033580 3-3 580 M40X3
KAPTLA H4033620 3-3 620 M40X3
THREAD M 42 X 3 (Positive Handle Lock) 96-Head
KAPTLA4222360PHL 2-2 360 M42X3
KAPTLA4222400PHL 2-2 400 M42X3
KAPTLA4222460PHL 2-2 460 M42X3
KAPTLA4222520PHL 2-2 520 M42X3
KAPTLA4222580PHL 2-2 580 M42X3
KAPTLA4233360PHL 3-3 360 M42X3
KAPTLA4233400PHL 3-3 400 M42X3
KAPTLA4233460PHL 3-3 460 M42X3
KAPTLA4233520PHL 3-3 520 M42X3
KAPTLA4233580PHL 3-3 580 M42X3

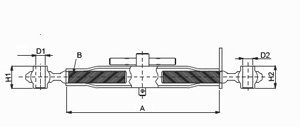

O.E.M TOP LINKS
CODE PIPE A(MM) THREAD B LH BALL ID/HT (D1/H1) RH BALL ID/HT (D2/H2) TYPE
KAPTLA2401OEM 350 M24X3 25.4/51 25.4/51 1
KAPTLA2402OEM 400 M24X2 25.4/51 25.4/44 1
KAPTLA2403OEM 430 M24X2 25.4/51 19.0/44 1
KAPTLA2404OEM 430 M24X2 25.4/44 25.4/44 2
KAPTLA3001OEM 470 M30X3.5 25.4/51 25.4/51 3
KAPTLA3601OEM 470 M36X3 25.4/51 (80) 25.4/51 (80) 3
KAPTLA3602OEM 470 M36X3 32/51 (96) 25.4/51 (80) 3
