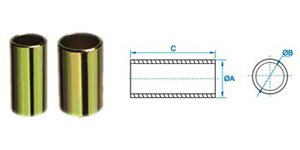

| Replacement Bushes | |||
| CODE | ØA mm | ØB mm | C mm |
| KAPRB191641 | 19 | 16 | 41 |
| KAPRB221635 | 22 | 16 | 35 |
| KAPRB251941 | 25.4 | 19 | 41 |
| KAPRB251951 | 25.4 | 19 | 50.8 |
| KAPRB282245 | 28.4 | 22.2 | 44.5 |
| KAPRB282263 | 28.4 | 22.2 | 63 |
| KAPRB282235 | 28.6 | 22.2 | 35 |
| KAPRB282244 | 28.6 | 22.2 | 44 |
| KAPRB282251 | 28.6 | 22.2 | 50.8 |
| KAPRB322551 | 32 | 25.4 | 50.8 |
| KAPRB362845 | 36.5 | 28.6 | 44.5 |

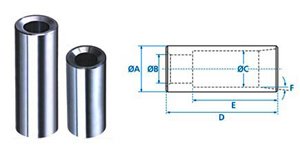

| Tine Bushes | |||||||
| CODE | Outer ØA mm | Inner ØB mm | Inner ØC mm | Length D mm | Depth E mm | Angle F Ship | Weight kg. |
| KAPTIB382595 | 38 | 25.4 | 31 | 95 | 74 | 4"30 | 0.3 |
| KAPTIB4023105 | 40 | 23 | 25 | 105 | 78 | 5" | 0.45 |
| KAPTIB4124110 | 41 | 24 | 32 | 110 | 79 | 5" | 0.51 |
| KAPTIB4125108 | 41 | 25.4 | 30 | 108 | 80 | 5"30 | 0.5 |
| KAPTIB4525110 | 45 | 25 | 0 | 110 | 0 | 5" | 0.77 |
| KAPTIB5023110 | 50 | 23 | 29 | 110 | 85 | 56" | 1.8 |
| KAPTIB5025110 | 50 | 25 | 29 | 110 | 85 | 6" | 1.08 |
| KAPTIB5028105 | 50 | 28 | 0 | 105 | 0 | 10" | 1.05 |
| KAPTIB5030108 | 50 | 30 | 36 | 108 | 80 | 5"30 | 0.76 |
| KAPTIB5030110 | 50 | 30 | 39 | 110 | 84 | 6" | 1.63 |
| KAPTIB5125110 | 51 | 25 | 32 | 110 | 109 | 5"30 | 1.09 |
| KAPTIB5130110 | 51 | 30 | 38 | 110 | 86 | 5" | 0.76 |
| KAPTIB5532120 | 55 | 32 | 0 | 120 | 0 | 4"30 | 1.24 |
| KAPTIB5712120 | 57 | 12.59 | 40 | 120 | 105 | 5"30 | 0 |
| KAPTIB331463 | 33 | 0 | 14 | 63 | 46 | 3" | 0.29 |
| KAPTIB331663 | 33 | 0 | 16.5 | 63 | 48 | 1.5" | 0.28 |
| KAPTIB452297 | 45 | 22 | 28 | 97 | 75 | 5" | 1.27 |
| KAPTIB5032110 | 50 | 32 | 39 | 110 | 84 | 5.5" | 1.02 |
| KAPTIB6032110 | 60 | 32 | 39 | 110 | 84 | 5.5" | 1.8 |
