Hitch Pins

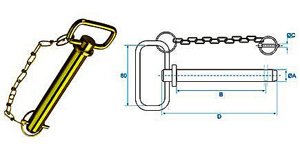

Hitch Pin With Chain & Linch Pin
Spinotto D' Attacco
We offer hitch pins for snow plows, farm and lawn tractors and for other industrial applications. These pins are designed to reduce the noise and ensure smooth operation in the process of towing. Our hitch pins come with clip pin, lynch pin or retailer chain based upon the requirement of the clients. We also specialize in manufacturing hitch pins with swivel handles for specific applications.
CODE A B C D
KAPHPWLP12093 12.7 92.5 6.5 127
KAPHPWLP12111 12.7 111 6.5 146
KAPHPWLP16103 15.9 103 6.5 136
KAPHPWLPI6111 15.9 111 6.5 146
KAPHPWLPI16165 15.9 165 6.5 200
KAPHPWLPI9102 19 102 6.5 140
KAPHPWLPI19110 19 110 6.5 147
KAPHPWLPI9111 19 111 8.5 148
KAPHPWLPI9115 19 115 12 153
KAPHPWLPI9164 19 165 8.5 200
KAPHPWLPI9165 19 165 6.5 204
KAPHPWLPI9166 19 165 8.5 204
KAPHPWLP22115 22 115 6.5 153
KAPHPWLP22128 22 128 6.5 168
KAPHPWLP22164 22 165 6.5 200
KAPHPWLP22165 22 165 10 204
KAPHPWLP25165 25 165 10 204
KAPHPWLP25166 25 165 6.5 204
KAPHPWLP25189 25 189 12 227
KAPHPWLP28100 28 100 12 138
KAPHPWLP28120 28 120 10 158
KAPHPWLP28156 28 156 12 196
KAPHPWLP28165 28 1656 6.5 204
KAPHPWLP28190 28 190 6.5 228
KAPHPWLP28189 28 189 12 228
KAPHPWLP20183 30 183 12 220
KAPHPWLP32162 32 162 6.5 204
KAPHPWLP32189 32 189 12 227
KAPHPWLP32165 32 165 10 204
KAPHPWLP32191 32 191 6.5 228
KAPHPWLP35189 35 189 12 227
KAPHPWLP38187 38 187 12 227

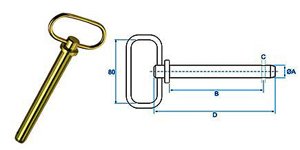

Hitch Pin
Spinotto D' Attacco
CODE A B C D
KAPHP12089 12.7 89 4 127
KAPHP12102 12.7 102 4 136
KAPHP12108 12.7 108 5 144
KAPHP12114 12.7 114 5 150
KAPHP16089 15.9 89 5 127
KAPHP16102 15.9 102 5 136
KAPHP16108 15.9 108 5 144
KAPHP16114 15.9 114 5 150
KAPHP16127 15.9 127 6 165
KAPHP16152 19 152 6 192
KAPHP19102 19 102 8 136
KAPHP19108 19 108 8 144
KAPHP19114 19 114 8 150
KAPHP19127 19 127 8 165
KAPHP19140 19 140 8 178
KAPHP19152 19 152 8 190
KAPHP19158 22 158 8 196
KAPHP22108 22 108 10 144
KAPHP22114 22 114 10 150
KAPHP22127 22 127 10 165
KAPHP22152 22 152 10 190
KAPHP22158 22 158 10 198
KAPHP22165 22 165 10 204
KAPHP25108 25.4 108 10 144
KAPHP25114 25.4 114 10 150
KAPHP25152 25.4 152 10 190
KAPHP25158 25.4 158 10 204
KAPHP25165 25.4 165 10 228
KAPHP25190 25.4 190 10 150
KAPHP28114 28 114 12 190
KAPHP28152 28 152 12 198
KAPHP28158 28 158 12 198
KAPHP28165 28 165 12 204
KAPHP28190 28 190 12 228
KAPHP32152 32 152 12 190
KAPHP32158 32 158 12 198
KAPHP32165 32 165 12 204
KAPHP32190 32 190 12 230
KAPHP35190 35 190 12 230
KAPHP38190 38 190 12 230

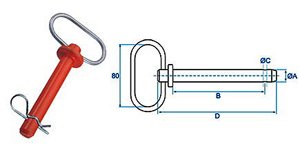

Orange Hitch Pin With Hair Pin
CODE A B C D
KAPOHP16155 16 155 4 192
KAPOHP19104 19 104 5 141
KAPOHP19162 19 162 5 199
KAPOHP22168 22 168 5 205
KAPOHP25175 25.4 175 6 212

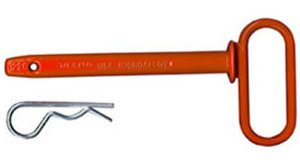

FORGED HANDLE E-GRIP HITCH PIN
E-GRIP CODE PIN DIA. (IN) B PIN DIA. (MM) B USABLE LENGH (IN) A USABLE LENGH (mm) A Hair pin Code
KAPFHP1196E 1/2 12.7 3 1/2 88.9 LHP 25062
KAPFHP1206E 3/4 19.05 4 101.6 LHP 35084
KAPFHP1219E 5/8 15.875 6 152.4 LHP 35084
KAPFHP1221E 3/4 19.05 6 1/4 158.75 LHP 35084
KAPFHP1226E 7/8 22.225 6 1/2 165.1 LHP 45090
KAPFHP1231E 1 25.4 6 3/4 171.45 LHP 45090

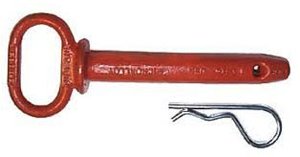

FORGED HANDLE HITCH PIN
CODE PIN DIA. (IN) B PIN DIA. (MM) B USABLE LENGH (IN) A USABLE LENGH (mm) A Hair pin Code
KAPFHP1241 1 1/8 28.575 7 177.8 LHP 45090
KAPFHP1251 1 1/4 31.75 7 177.8 LHP 45090
KAPFHP1261 1 3/8 34.925 7 177.8 LHP 45090
KAPFHP1271 1 1/2 38.1 8 203.2 LHP 45090

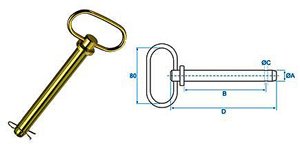

Hitch Pin With Hair Pin
Spinotto D' Attacco
CODE A B C D
KAPHPWHP12090 12.7 90 4 125
KAPHPWHP12105 12.7 105 3 142
KAPHPWHP12110 12.7 110 4 147
KAPHPWHP16105 15.9 105 4 136
KAPHPWHP16149 15.9 149 3.5 186
KAPHPWHP16162 16 162 4 199
KAPHPWHP19098 19 98 4.5 130
KAPHPWHP19110 19 110 4.5 147
KAPHPWHP19157 19 157 4.5 194
KAPHPWHP19162 19 162 4.5 199
KAPHPWHP22110 22 110 5 147
KAPHPWHP22157 22 157 5 194
KAPHPWHP22162 22 162 5 199
KAPHPWHP25103 25 103 5 140
KAPHPWHP25110 25.4 110 5.5 147
KAPHPWHP25158 25 158 6 194
KAPHPWHP25162 25 162 6 199
KAPHPWHP25181 25 181 6 214
KAPHPWHP25118 25 118 6 155
KAPHPWHP28183 28 183 7 220
KAPHPWHP28162 28.6 162 6.5 199
KAPHPWHP32162 32 162 7 199

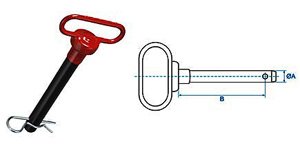

RED HANDLE HITCH PIN (GRADE 5)
CODE A B
KAPRHHP01 1/2" 3-5/8"
KAPRHHP02 5/8" 4"
KAPRHHP03 5/8" 5-3/4"
KAPRHHP04 3/4" 4"
KAPRHHP05 3/4" 6-5/8"
KAPRHHP06 7/8" 4-1/4"
KAPRHHP07 7/8" 6-5/8"
KAPRHHP08 1" 4-3/4"
KAPRHHP09 1" 5-1/4"
KAPRHHP10 1" 8"
KAPRHHP11 1-1/8" 8-5/8"
KAPRHHP12 1-1/4" 8-5/8"
KAPRHHP13 1-1/2" 8-5/8"

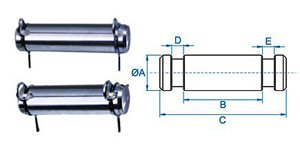

CYCLINDER PINS
CODE A B C D E
KAPCLP185270 18 52 70 6 6
KAPCLP187290 18 72 90 6 6
KAPCLP187290 18 82 100 6 6
KAPCLP205876 20 58 76 6 6
KAPCLP225270 22 52 70 6 6
KAPCLP2491109 24 91 109 6 6
KAPCLP265776 26 57 76 6 6
KAPCLP2891109 28 91 109 6 6

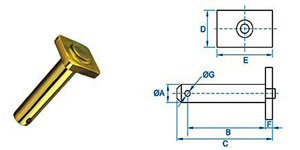

Square Head Pins
Pernia Testa Ouadra Flat
CODE A B C D E F G
KAPSHP1988109 19 88 109 40 65 8 6
KAPSHP2488109 24 88 109 40 65 8 6

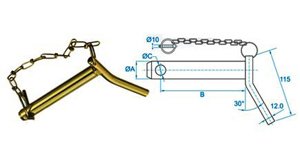

BENT HANDLE HITCH PIN
CODE W/L. PIN CHAIN W/O L. PIN CHAIN A B C
KAPBHHP19125 KAPBHHP19125WO 19 125 12
KAPBHHP19135 KAPBHHP19135WO 19 135 12
KAPBHHP19175 KAPBHHP19175WO 19 175 12
KAPBHHP22125 KAPBHHP22125WO 22 125 12
KAPBHHP22135 KAPBHHP22135WO 22 135 12
KAPBHHP22175 KAPBHHP22175WO 22 175 12
KAPBHHP25125 KAPBHHP25125WO 25 125 12
KAPBHHP25135 KAPBHHP25135WO 25 135 12
KAPBHHP25175 KAPBHHP25175WO 25 175 12
KAPBHHP28135 KAPBHHP28135WO 28 135 12
KAPBHHP28175 KAPBHHP28175WO 28 175 12
KAPBHHP28125 KAPBHHP28125WO 28 125 12
KAPBHHP32135 KAPBHHP32135WO 32 135 12
KAPBHHP32175 KAPBHHP32175WO 32 175 12
KAPBHHP37135 KAPBHHP37135WO 37 135 12
KAPBHHP37175 KAPBHHP37175WO 37 175 12

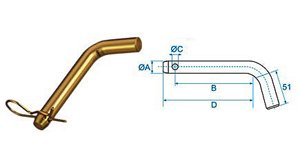

Bent Type Hitch Pin
Perno Piegato Del Tipo
CODE A B C D
KAPBHP1276 12.7 76 4 85
KAPBHP1676 15.9 76 5 88
KAPBHP1689 15.9 89 5 102
KAPBHP1989 19 89 5 102
KAPBHP1999 19 99 5 111

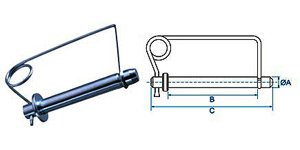

Wire Lock Hitch Pin
Perno Con La Serratura Del Legare
CODE A B C
KAPWLHP12102 12 102 140
KAPWLHP16102 16 102 140
KAPWLHP19102 19 102 140
KAPWLHP19152 19 152 190
KAPWLHP22152 22 152 190
KAPWLHP25152 25 152 190

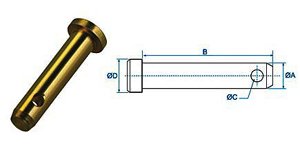

Standard Clevis Pins
Perno Stadard
CODE A B C D
KAPSCP4516 4.5 16 2.5 9
KAPSCP6020 6 20 2.5 10
KAPSCP6025 6 25 2.5 10
KAPSCP8019 8 19 3 12
KAPSCP8024 8 24 3 12
KAPSCP8028 8 28 3 12
KAPSCP8032 8 32 3 12
KAPSCP8038 8 38 3 12
KAPSCP8045 8 45 3 12
KAPSCP1025 10 25 4 12
KAPSCP1032 10 32 4 14
KAPSCP1045 10 45 4 14
KAPSCP1132 11 32 4 15
KAPSCP1145 11 45 4 15
KAPSCP1238 12 38 4 16
KAPSCP1250 12 50 4 16

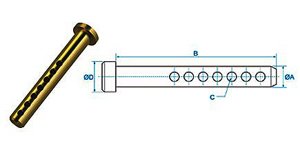

Universal Clevis Pins
CODE A B C D No. of Holes
KAPUCP6050 6 50 2.5 9 5
KAPUCP8050 8 50 3 12 5
KAPUCP1050 10 50 4 14 5
KAPUCP1150 11 50 4 15 5
KAPUCP1163 11 63 4 15 5
KAPUCP1176 11 76 4 15 7
KAPUCP1250 12 50 4 16 5
KAPUCP1263 12 63 4 16 7
KAPUCP1276 12 76 4 16 7
KAPUCP1676 16 76 5 20 7
KAPUCP1976 19 76 6 24 7
