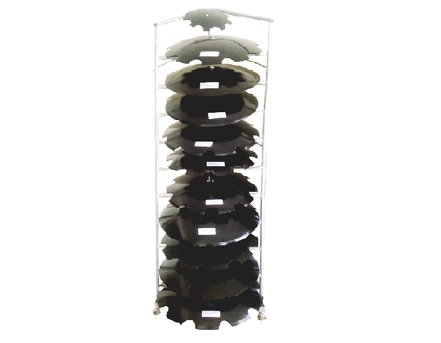

Disc Blades

Features & Benefits:

  • Available in Boron Steel & High Carbon alloy steel options.
  • Hardness:  48 +/- 2 HRC.
  • Lathed, precise and uniform edges, obtaining optimal soil penetration.
  • Uniform thickness.
  • Our discs undergo stringent testing to ensure the best quality of disc blades.
  • Shot blasted & Powder coated for long lasting & great looking products.
  • Available in all type of center holes without sharp edges.
  • Available in both Concave & Flat Disc categories with plain and notched options.

Specification:

CODE Dia. Inch mm Type Thick mm Concavity
KAPDBL1603S 16 410 SMOOTH 3 37
KAPDBL1603N 16 410 NOTCHED 3 37
KAPDBL1803S 18 460 SMOOTH 3 46
KAPDBL1803N 18 460 NOTCHED 3 46
KAPDBL1835S 18 460 SMOOTH 3.5 46
KAPDBL1835N 18 460 NOTCHED 3.5 46
KAPDBL2035S 20 510 SMOOTH 3.5 57
KAPDBL2035N 20 510 NOTCHED 3.5 57
KAPDBL2245S 22 560 SMOOTH 4.5 68
KAPDBL2245N 22 560 NOTCHED 4.5 68
KAPDBL2206S 22 560 SMOOTH 6 68
KAPDBL2206N 22 560 NOTCHED 6 68
KAPDBL2445S 24 610 SMOOTH 4.5 81
KAPDBL2445N 24 610 NOTCHED 4.5 81
KAPDBL2406S 24 610 SMOOTH 6 81
KAPDBL2406N 24 610 NOTCHED 6 81
KAPDBL2605S 26 660 SMOOTH 5 97
KAPDBL2605N 26 660 NOTCHED 5 97
KAPDBL2606S 26 660 SMOOTH 6 97
KAPDBL2606N 26 660 NOTCHED 6 97
KAPDBL2806S 28 712 SMOOTH 6 102
KAPDBL2806N 28 712 NOTCHED 6 102
KAPDBL2808S 28 712 SMOOTH 8 102
KAPDBL2808N 28 712 NOTCHED 8 102
