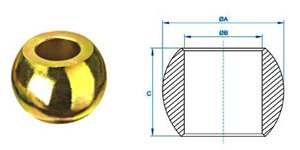

| BALL WITHOUT COLLAR (HEAT TREATED 58-62 HRC - OPTIONAL) | |||
| BORE TOLERANCE A12/A13 | |||
| CODE | B | A | C |
| KAPLLB281620 | 16 | 28 | 20 |
| KAPLLB321625 | 16 | 32 | 25.4 |
| KAPLLB441935 | 19 | 44 | 35 |
| KAPLLB442235 | 22.1 | 44 | 35 |
| KAPLLB482235 | 22.1 | 48 | 35 |
| KAPLLB482835 | 28.4 | 48 | 35 |
| KAPLLB502538 | 25.4 | 50 | 38 |
| KAPLLB502540 | 25.4 | 50 | 40 |
| KAPLLB502838 | 28.4 | 50 | 38 |
| KAPLLB543535 | 35 | 54 | 35 |
| KAPLLB562235 | 22.1 | 56 | 35 |
| KAPLLB562245 | 22.1 | 56 | 45 |
| KAPLLB562535 | 25.4 | 56 | 35 |
| KAPLLB562545 | 25.4 | 56 | 45 |
| KAPLLB562835 | 28.4 | 56 | 35 |
| LLB622845 | 28.4 | 62 | 45 |
| LLB632845 | 28.4 | 63.5 | 45 |
| KAPLLB642845 | 28.4 | 64 | 45 |
| KAPLLB642854 | 28.4 | 64 | 54 |
| KAPLLB643745 | 37.1 | 64 | 45 |
| KAPLLB643845 | 38 | 64 | 45 |
| KAPLLB853757 | 37 | 85 | 57 |
| KAPLLB855157 | 51 | 85 | 57 |

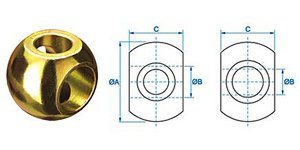

| Ball (Double Bore) | |||
| Braccio 3 Punto Completo | |||
| CODE | A | B | C |
| KAPDBB56(22.1/28.7)45 | 56 | 22.1/28.7 | 44.5 |

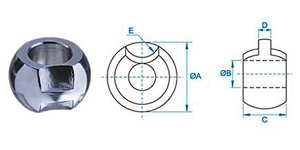

| Ball (With Cut) | |||||
| CODE | A | B | C | D | E |
| KAPBWC562235 | 56.5 | 22 | 35 | 10 | R35 |
| KAPBWC562845 | 56.5 | 28.6 | 44.5 | 10 | R35 |

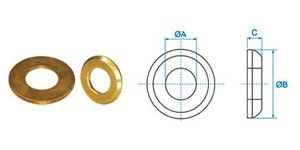

| SPACERS | |||
| CODE | A | B | C |
| KAPSP56287 | 28 | 56 | 7 |
| KAPSP64287 | 28 | 64 | 7 |
| KAPSP64387 | 38 | 64 | 7 |
