KAP Top Link End

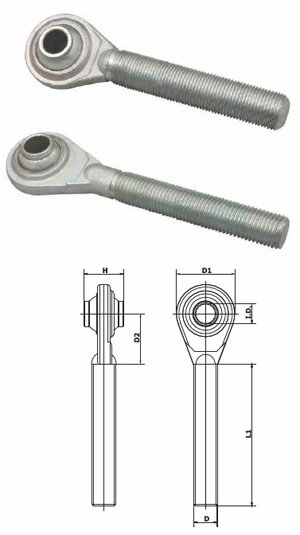

TOP LINK END (UNC)
CODE CAT I.D. THREAD D L1 D1 D2 H
KAPTLEUNCR00 0 16 3/4"UNC R 105 47 30 25.4
KAPTLEUNCL00 0 16 3/4"UNC L 105 47 30 25.4
KAPTLEUNCR10 1 19 1.1/8"UNC R 150 58 53 44
KAPTLEUNCL10 1 19 1.1/8"UNC L 150 58 53 44
KAPTLEUNCR20 2 25.4 1.1/8"UNC R 180 66 55 51
KAPTLEUNCR20 2 25.4 1.1/8"UNC L 180 66 55 51
KAPTLEUNCR21 2 25.4 1.1/4"UNC R 180 76 62 51
KAPTLEUNCL21 2 25.4 1.1/4"UNC L 180 76 62 51
KAPTLEUNCR30 3 32 1.3/8"UNC R 155 89 76 51
KAPTLEUNCL30 3 32 1.3/8"UNC L 155 89 76 51

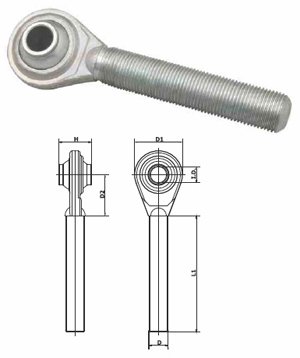

TOP LINK END (METRIC)
CODE CAT I.D. THREAD D L1 D1 D2 H
KAPTLE20R25A0 0 16 M20X2.5R 85 48 40 25.4
KAPTLE20L25A0 0 16 M20X2.5L 85 48 40 25.4
KAPTLE22R25A1 1 19 M22X2.5R 95 58 50 44
KAPTLE22L25A1 1 19 M22X2.5L 95 58 50 44
KAPTLE22R25B1 1 19 M22X2.5R 115 58 50 44
KAPTLE22L25B1 1 19 M22X2.5L 115 58 50 44
KAPTLE24R25A1 1 19 M24X2.5R 115 58 50 44
KAPTLE24L25A1 1 19 M24X2.5L 115 58 50 44
KAPTLE24R30A1 1 19 M24X3 R 115 58 50 44
KAPTLE24L30A1 1 19 M24X3 L 115 58 50 44
KAPTLE24R30B1 1 19 M24X3 R 155 62 50 44
KAPTLE24L30B1 1 19 M24X3 L 155 62 50 44
KAPTLE24R30A2 2 25.4 M24X3 R 165 75 55 51
KAPTLE24L30A2 2 25.4 M24X3 L 165 75 55 51
KAPTLE27R30A1 1 19 M27X3 R 150 58 50 44
KAPTLE27L30A1 1 19 M27X3 L 150 58 50 44
KAPTLE27R30A2 2 25.4 M27X3 R 165 66 50 51
KAPTLE27L30A2 2 25.4 M27X3 L 165 66 50 51
KAPTLE27R30HA2 2 25.4 M27X3 R 165 75 50 51
KAPTLE27L30HA2 2 25.4 M27X3 L 165 75 50 51
KAPTLE30R30A1 1 19 M30X3 R 155 58 50 44
KAPTLE30L30A1 1 19 M30X3 L 155 58 50 44
KAPTLE30R35A1 1 19 M30X3.5 R 155 58 50 44
KAPTLE30L35A1 1 19 M30X3.5 L 155 58 50 44
KAPTLE30R30A2 2 25.4 M30X3 R 165 75 55 51
KAPTLE30L30A2 2 25.4 M30X3 L 165 75 55 51
KAPTLE30R35A2 2 25.4 M30X3.5 R 165 75 55 51
KAPTLE30L35A2 2 25.4 M30X3.5 L 165 75 55 51
KAPTLE36R30A2 2 25.4 M36X3 R 165 80 55 51
KAPTLE36L30A2 2 25.4 M36X3 L 165 80 55 51
KAPTLE36R30B2 2 25.4 M36X3 R 175 80 55 51
KAPTLE36L30B2 2 25.4 M36X3 L 175 80 55 51
KAPTLE36R30A2 2 25.4 M36X3 R 200 96 70 51
KAPTLE36L30A2 2 25.4 M36X3 L 200 96 70 51
KAPTLE36R30A3 3 32 M36X3 R 200 96 70 51
KAPTLE36L30A3 3 32 M36X3 L 200 96 70 51
KAPTLE40R30A2 2 25.4 M40X3 R 170 80 60 51
KAPTLE40L30A2 2 25.4 M40X3 L 170 80 60 51

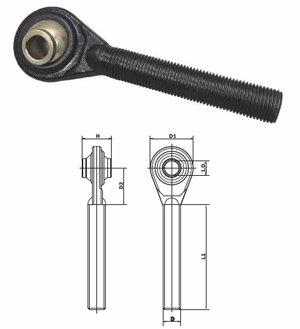

TOP LINK END (HEAVY DUTY)
CODE CAT I.D. A THREAD D L1 D1 D2 H
KAPTLE30R35A2H 2 25.4 M30X3.5 R 170 80 55 51
KAPTLE30L35A2H 2 25.4 M30X3.5 L 170 80 55 51
KAPTLE40R30A3H 3 32 M40X3 R 200 96 70 51
KAPTLE40L30A3H 3 32 M40X3 L 200 96 70 51
KAPTLE42R30A2H 2 25.4 M42X3 R 200 96 70 51
KAPTLE42L30A2H 2 25.4 M42X3 L 200 96 70 51
KAPTLE42R30A3H 3 32 M42X3 R 200 96 70 51
KAPTLE42L30A3H 3 32 M42X3 L 200 96 70 51

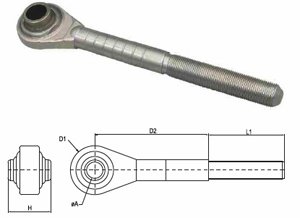

TOP LINK END (REPLACES FORD)
CODE CAT I.D. A THREAD D L1 D1 D2 H
KAPTLE FORD L1 1 19 1.1/4"UNC L 128 58 208 44
KAPTLE FORD L2 2 25.4 1.1/4"UNC L 128 76 208 51
KAPTLE FORD R2 2 25.4 1.1/4"UNC R 168 76 86 51

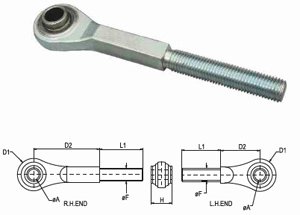

TOP LINK END (REPLACES JD)
CODE CAT I.D. A THREAD F L1 D1 D2 H
KAPTLE JD R1 2 25.4 1.1/8"UNC R 145 66 162 51
KAPTLE JD L1 1 20 1.1/8"UNC L 160 66 56 44
KAPTLE JD 27R30 2 25.4 M27X3 R 145 66 162 51
KAPTLEJD 27L30 1 20 M27X3 L 160 66 56 44

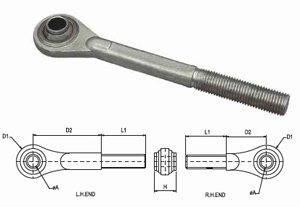

TOP LINK END (REPLACES MF)
CODE CAT I.D. A THREAD D L1 D1 D2 H
KAPTLE MF R1 1 19 1 1/16"UNF R 128 58 167 44
KAPTLE MF L1 1 19 1 1/16"UNF L 128 58 167 44
KAPTLE MF R2 2 25.4 1 1/16"UNF R 128 66 167 51
KAPTLE MF L2 2 25.4 1 1/16"UNF L 128 66 167 51

TOP LINK END (REPLACES MTZ)
CODE I.D. A THREAD D L1 D1 D2 H
KAPTLE MTZ R 22.1 M30(TPZ)RH 165 75 56 51
KAPTLE MTZ L 22.1 M30(TPZ)LH 165 75 56 51
